Brazing: A Versatile Joining Technology

Brazing is a metal joining technique that involves melting a filler metal—called brazing material—that has a lower melting point than the base metals. Unlike welding, brazing does not melt the base materials themselves. Instead, the molten filler flows into the narrow gaps between closely fitted parts through capillary action, forming a strong metallurgical bond upon cooling.

Key Features of Brazing

• Flexible bonding temperatures depending on the application

• Suitable for precision joining

• Effective for bonding dissimilar materials

• Capable of wide-area surface bonding

Typical Applications

• Medical devices and electronic components

• Cutting tools

• Jewelry and eyeglass frames

• Mobility components and building materials

Historical Background

Brazing is believed to have originated as early as ancient Egypt, where it was used for decorative metalwork involving gold and silver. Over thousands of years, it has evolved into a key industrial joining method, valued for its precision and reliability—particularly in sectors that demand durable and accurate assemblies.

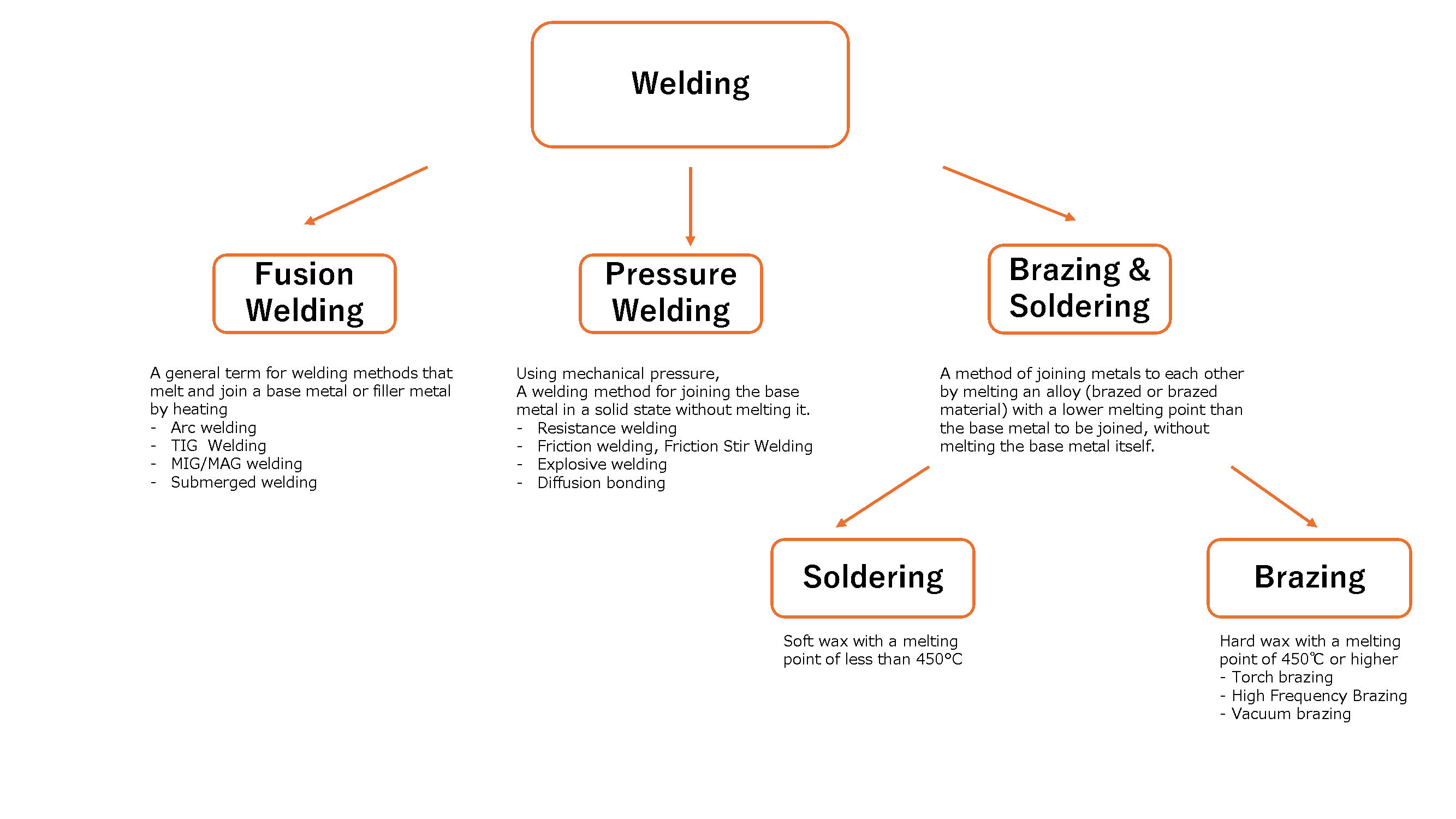

Brazing vs. Other Joining Methods

Brazing belongs to a broader family of joining technologies that also include welding and soldering. These are classified based on the method of bonding and the melting point of the filler metal:

Welding: Melts both filler and base metals to form the joint.

Brazing: Uses a filler metal with a melting point of 450°C or higher, without melting the base metal.

Soldering: This process is similar to brazing, but the filler metal has a melting point below 450°C.

Brazing in the Diamond Tool Industry

Brazing is especially valuable in the production of diamond tools, which require precision, strength, and thermal control.

Diamonds are not only extremely hard but also highly sensitive to heat, particularly in atmospheric conditions where oxidation can occur.

Since brazing does not melt the base material, it minimizes thermal stress on the diamond, helping to preserve its integrity and performance.

Through capillary action, the molten filler metal infiltrates the narrow spaces between the diamond and the substrate—usually carbide or steel—resulting in a strong, durable joint capable of withstanding extreme mechanical and thermal loads.

However, brazing diamonds in an open atmosphere poses a challenge: diamonds oxidize and degrade (graphitize) when exposed to high temperatures in the presence of oxygen.

To overcome this, vacuum brazing is used. This advanced method removes oxygen from the environment, protecting the diamond from damage and ensuring a clean, oxidation-free bond.

Vacuum brazing not only improves joint quality and consistency but also supports high-precision manufacturing and automation—key advantages for modern diamond tool production.

Conclusion

Thanks to its precision, versatility, and compatibility with dissimilar materials, brazing has become an indispensable technology in industries ranging from electronics to advanced cutting tools.

In particular, vacuum brazing offers a high-performance solution for joining sensitive materials like diamonds, enabling manufacturers to achieve both durability and efficiency in demanding applications.
