PP-Series High-speed vacuum brazing
Next-Generation Bonding Technology for Diamond Tools
Pin Power system is a vacuum brazing device that is fast and easy to operate, specialized for diamond tools. It is ideal for brazing not only diamond but also ultra-hard materials such as cemented carbide, and has many advantages over existing brazing operations, such as shorter production period, clean working environment, high consistency, and reduced failure-rate. Easy to operate even for the inexperienced user.
PP-S PLUS
Energy Management
Remote access and data collection
Cooling system management
Chamber inner diameter 150mm
PP-H
Energy Management
Remote access and data collection
Cooling system management
The volume in the chamber is about 1.5 times larger.
Chamber inner diameter 184mm
Conventional brazing
Harsh working environment
Requires high brazing skill
High power consumption
High emissions from the device
Complex maintenance
High-speed vacuum brazing
Clean working environment
Consistent automatic vacuum brazing
Low power consumption
Low emissions from the device
Easy self maintenance
High-Speed Vacuum Brazing Machine
The high-speed vacuum brazing machine is ideal for brazing supermaterials,
carbide, ceramics and all diamond materials, and can be brazed
quickly and easily.
Materials: Natural diamonds, synthetic diamonds such as PCD, PCBN, CVD, etc.
Substrate materials: carbide, steel, alloys, cermet, ceramics, etc.

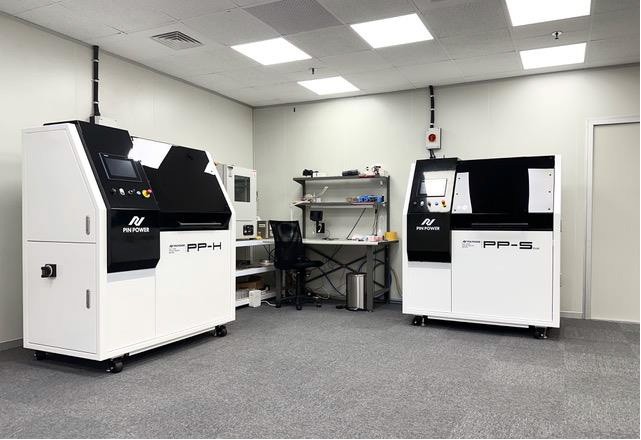

Two chamber sizes for different workpiece sizes
PP-S PLUS
Chamber inner diameter 150mm

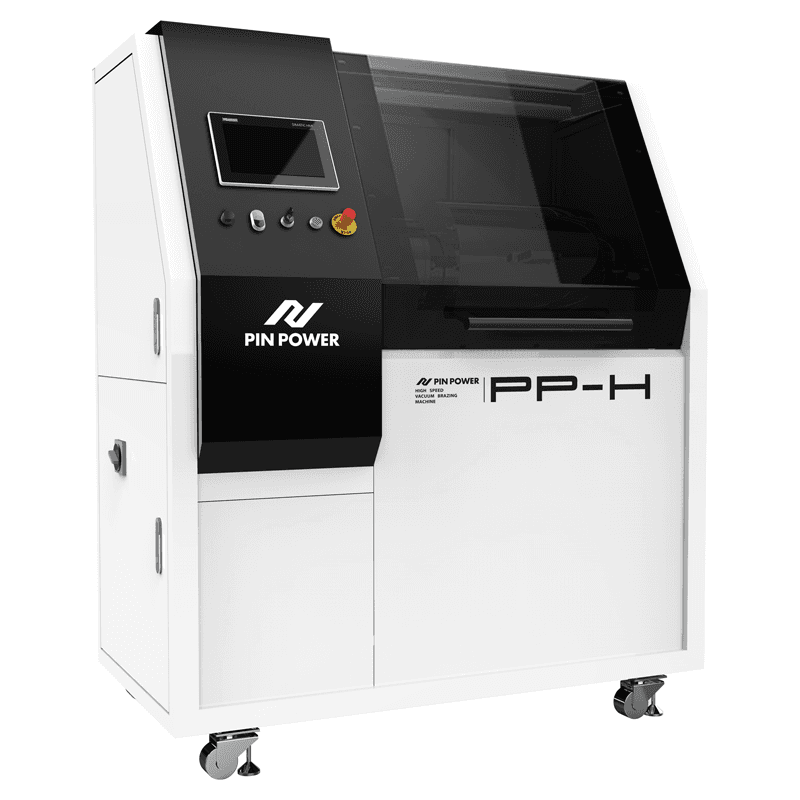

PP-H
Chamber inner diameter 184mm
Feature
One-touch operation, automatic brazing
Flux-free
1 cycle 90~120 minutes
Simple maintenance
Temperature control by data
Management of power consumption
Remote access
Benefit
Consistent and traceable quality independent of operators
Reduction of work man-hours
Improved productivity thru efficient process
Environmentally friendly
Recording energy consumption
Reduced downtime and maintenance costs
Efficient trouble shooting by remote control
Quod6 your partner and consultant from diamond selection to tool brazing.

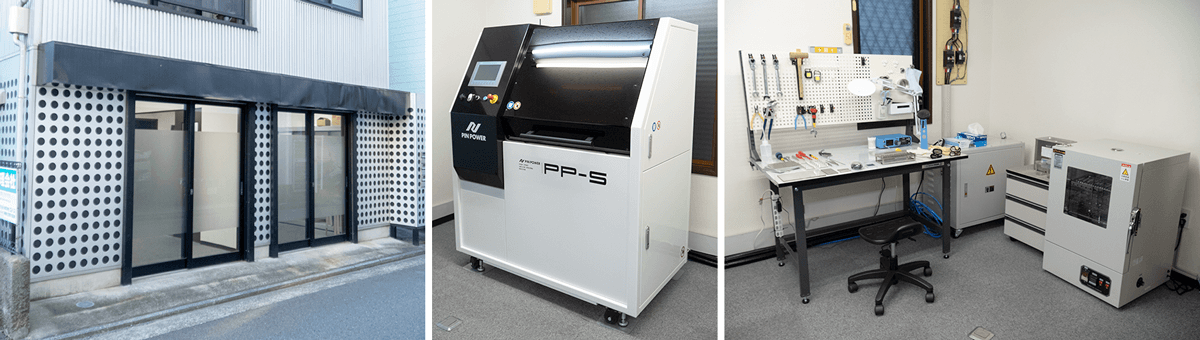

We provide implementation consulting services to help our customers optimize their production processes. Pin Power's team of experts will assess your current equipment and environment and provide you with the most suitable and cost-effective solution for your vacuum brazing machine installation. We can provide you with a complete vacuum brazing production station and the necessary training to enable your team to operate the machine efficiently. Further our training targets so that customers can perform maintenance and replacement of consumables by themselves. With these supports, you can improve yield rates and maintain sustainable, high-efficiency production capacity.
